KSC-2300 card dispenser with security exchange cartridge prepared for external RFID modules

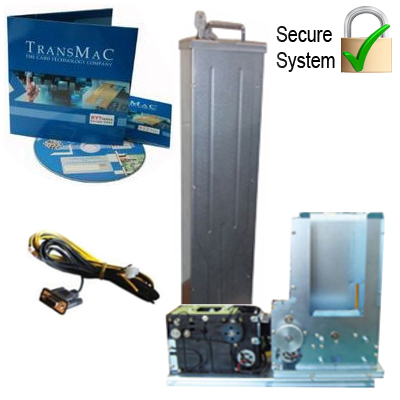

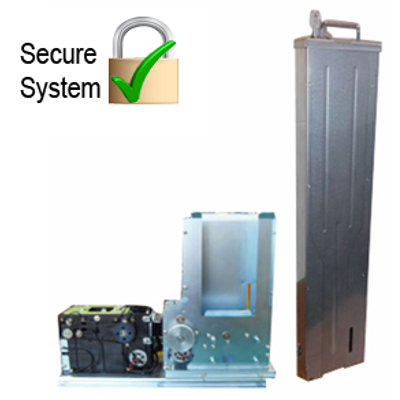

KSC-2300 card dispenser
The KSC-2300 card dispenser with security exchange cartridge for up to 500 cards. This dispenser was designed especially for value card e.g. prepaid cards. The cartridge is equipped with a security lock and is additionaly locked as a whole inside the dispenser. So a lost of cards during storage and transportation is prevented. Further the cartridge has it´s own memory with cartridge ID and quantity of cards inside.
The device has an intelligent micro processor which allows the monitoring of all card process. The upstream card feeder can be extended with an external card reading modul like RFID or barcode reader. With the integrated error and card capture function defective or not collected cards, can be restored in the system. Further options are the card drop function or a electronical shutter. Available with the interfaces RS-232C or RS-422.
- The KSC-2300 card dispenser with security exchange cartridge for up to 500 cards.
- Cartridge with memory for cartridge ID and amount of cards inside.
- With cartridge lock and locking as a whole inside the dispenser.
- The dispenser has an intelligent micro processor for monitoring of all card process.
- With error card and card capture funciton for defective cards.#
- Further options are the card drop function, shutter or bezel.
- Available with the interfaces RS-232 und RS-422.
| Description | Note | |
|---|---|---|
| Model/Typ | KSC-2300 Card dispenser | |
| Card magazin | Security exchange cartridge | |
| Card transport | Roller | |
| Card thickness | 0,76 – 1,0 mm | |
| Card size | ISO 7810 / 85,725 x 53,975 mm | |
| Magazine capacity | 200, 300, 500 | cards |
| Interface | RS-232, RS-422 | |
| Card empty sensor | Yes | |
| Low card warning sensor | Yes | |
| Card capture function | Yes | |
| Shutter | optional | |
| Bezel | optional | |
| Card drop function | optional | |
| Dimensions | 200 cards 321,9 x 125 x 362 mm
300 cards 321,9 x 125 x 462 mm 500 cards 321,9 x 125 x 562 mm |
|
| Power consumption | 24V DC+- 5%, 2,5 mA, Standby 44 mA | |
