KYT-4500 RFID module

KYT-4500

The KYT-4500 RFID module is a card reader and encoder for contactless chip cards ISO 14443 Mifare. This module is available in three versions as: sandwich PCB + antenna, PCB + antenna connected and PCB + antenna cable connection. With RS-232 interface.

  • KYT-4500 RF-Kartenleser KYT-4500 RFID module

  • KYT-4500 RFID card reader and encoder for ISO 14443 cards.
  • Available in three different versions:
  • Sandwich PCB+antenna
  • PCB+antenna connected
  • PCB+Antenne connected through cable.
  • Available with RS-232 interface.

Description Note
Model/Type KYT-4500 RFID
RFID cards ISO 14443A Mifare or compatible

reader+encoder

Interface RS-232

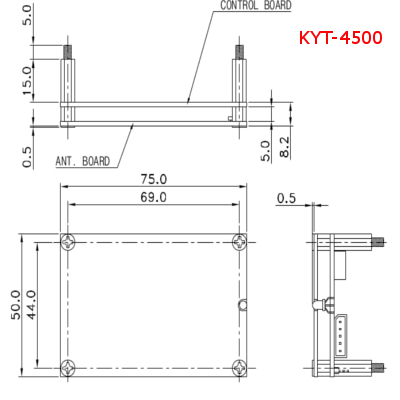

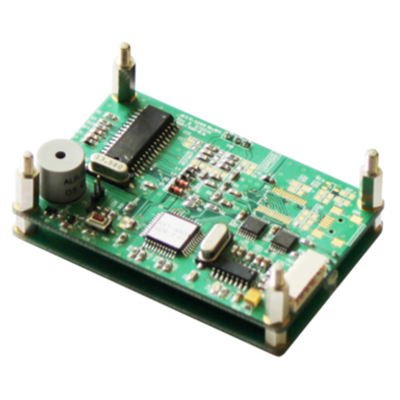

KYT-4500 Sandwich – PCB + antenna

Dimensions: 50 x 75 x 25 mm

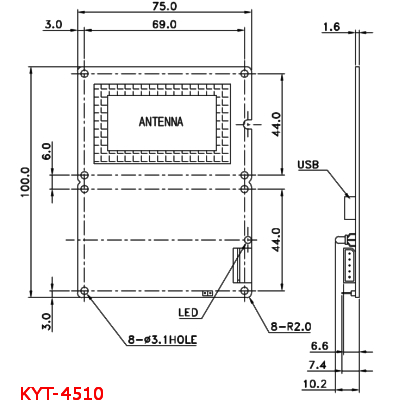

KYT-4510 PCB + antenna connected

Dimensions: 100 x 75 x 1,6 mm

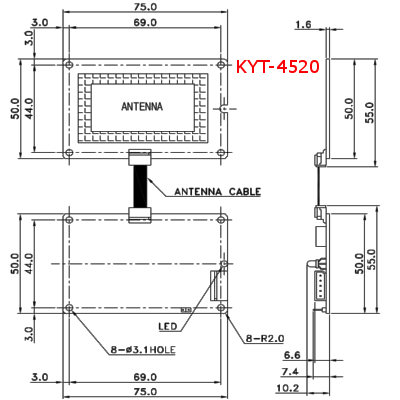

KYT-4520 PCB + antenna cable connection

Dimensions: 50 x 75 x 1,6 mm

Power consumption DC 5V
