CIM-2800 Card dispenser with RFID and exchange cartridge

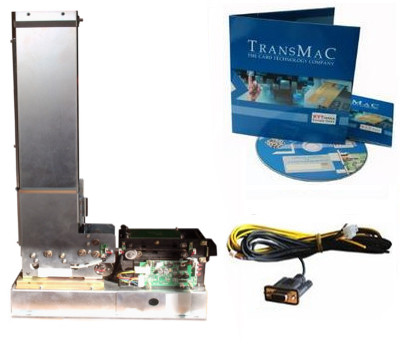

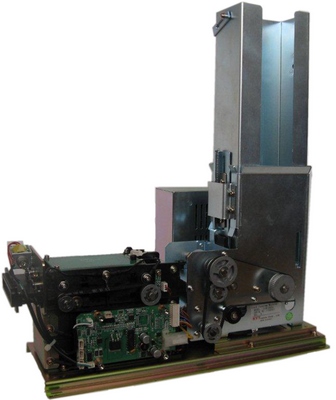

CIM-2800 Card dispenser

The CIM-2800 card dispenser with encoder for RFID cards and exchange cartridge for up to 500 cards (0,76 mm). The device can process RFID cards ISO 14443. With exchange cartridge for easy and quick refilling of the dispenser. Card thickness is adjustable between 0,2 – 1,0 mm. With unique clutch system to ensure the single output of every card and prevent card jam in the card magazine.

This device allows an intelligent monitoring of all card processes like card position, card level in the magazine and warning when magazine is empty. If a card is not taken by the customer or defective, the card capture function returns the card into the device in a separate box. The CIM-2800 can optionally be equiped with a bezel or a shutter against dust and vandalism. For card dispensing into a tako out port of a vending machine, the card-drop function is an available option. Furhter the dispenser has the option housing and can be cominbe with an thermal ReWrite printer.

  • CIM-2800 Kartenspender mit Kodierer CIM-2800 card dispenser

  • The CIM-2800 card dispenser with encoder for RFIC cards (contactless chip cards).
  • With exchange cartridge for quick an easy refill with up to 500 cards.
  • For high speed card processing.
  • With unique clutch system to prevent card jam.
  • Card can be returned into the dispenser with the card capture function.
  • The card thickness is adjustable betwee 0,2 – 1,0 mm.
  • With own memory for monitoring of  all card processes.
  • Available with RS-232 interface.

Description Note
Model/Typ CIM-2800 card dispenser RFID
Card magazine exchange cartridge
Card transportation Roller
Card thickness 0,22 – 1,0 mm
Card size ISO 7810 /  85,725 x 53,975 mm
RFID cards reading + encoding

ISO 144443A Mifare

Card magazine capacity 200, 300, 500 cards
Interface RS-232
Card empty sensor Yes
Low card warning sensor Yes
Card capture function Yes
Card capture box Yes (30 cards) for returned cards
Card level sensor capture box Yes
 Further Options Housing

Thermal ReWrite Drucker

Card-Drop Funktion

 Dimensions without capture card box

200 cards 179 x 315 x 302 mm

300 cards 179 x 315 x 378 mm

500 cards 179 x 315 x 531 mm

with capture card box

200 cards 143 x 262 x 331 mm

300 cards 143 x 262 x 409 mm

500 cards 143 x 262 x 551 mm

 Power consumption DC 24V (+-5%)
