TBSR-1000 Card reader for chip and RFID cards

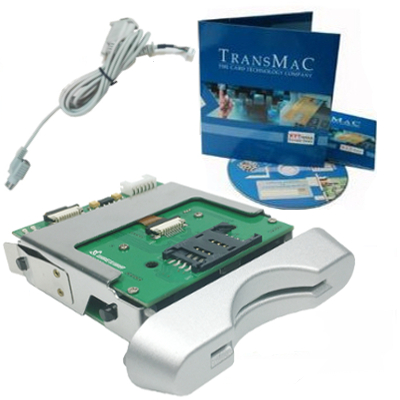

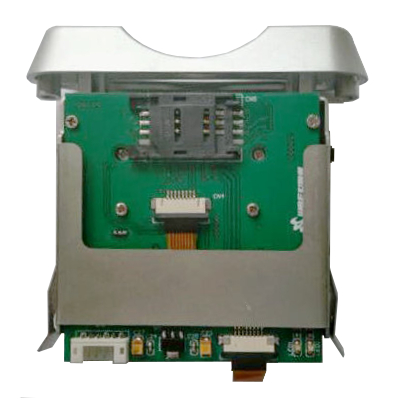

TBSR-1000 Card reader

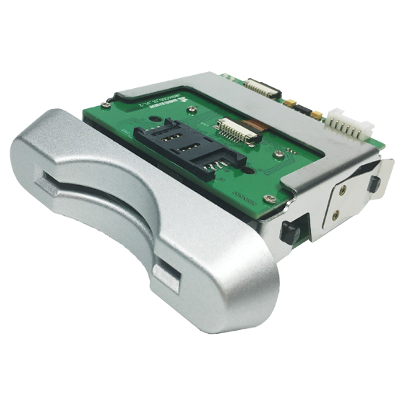

The TBSR-1000 Card reader with encoder for chip and RFID cards. Optional available with an SAM slot. This model has a very compact and robust design and has a metal bezel. Availalbe with the interfaces RS-232 or USB.

  • TBSR-1000 Kartenlesegerät TBSR-1000 Card reader

  • The TBSR-1000 insertion card reader with encoder for chip and RFID cards.
  • Suitable for chip cards ISO 7816 and RFID cards ISO 14443 A+B, 1443/4 Typ A+B+CPU.
  • Optional available with addtional SAM slot.
  • With robust metal bezel.
  • Availalbe with the interfaces RS-232 or USB.

Description Note
Model/Series TBSR-1000 card reader
Chip cards ISO 7816, CPU T=0, T=1

AT24C01, 24C02,24C256

SLE4442,SLE4428,…

reading + encoding

RFID cards ISO 14443 A+B

ISO 1443-3/-4, (Typ A+B, CPU card)

M1 Serie Mifare 1K S50, 4K S70, UL.

reading + encoding

SAM cards T=0, T=1

optional 1 SAM-reader on board

Card standard ISO cards ID1

width: 53,92-54,18 mm

lenth: 85,47-85,90 mm

Card thickness 0,76-1,0 mm Standard 0,76 mm
Baudrate 9600 bps max. 115200 bpds
RoHS conform
Interface RS-232 or USB (USB 2.0 full speed)

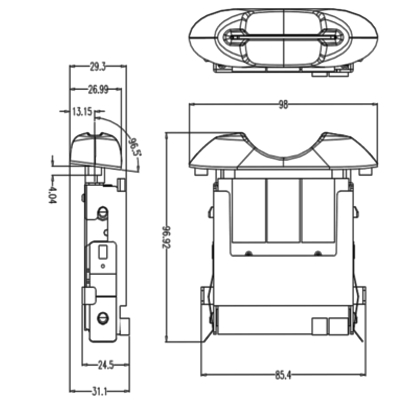

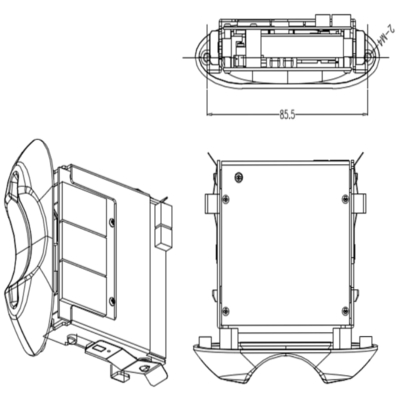

Dimensions Without bezel = 78 x 74,3 x 22 mm

With bezel=        78 x 92,3 x 22 mm

Weight 200 g
Input voltage 5V± 5%,
