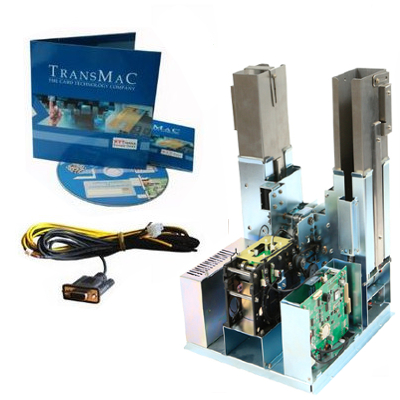

CCM-4000 Card collector with encoder and 2 exchange cartridges

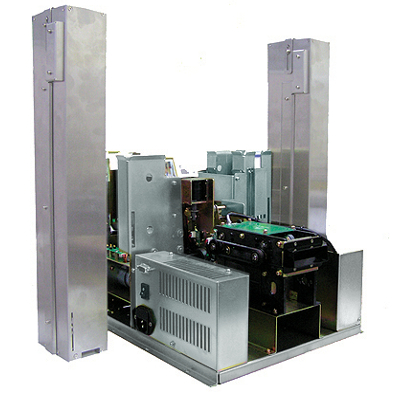

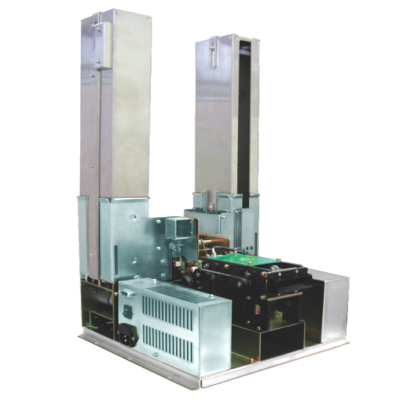

CCM-4000 Card collector
The CCM-4000 Card collector with reader/encoder for magnetic, chip and RFID cards. With 2 exchange cartridges for up to 1.000 cards (0,76 mm). This model can read all 3 magnetic tracks simultaneous and encode in HiCo and/or LoCo. The two exchange cartridges are controllable separately and allows the processing of two different card types.
In case a card is e.g. defective or unvalid, this card can be sorted out by the device with the card capture function. This cards will be stored in a separate capture card box. Optional with bezel or shutter as protection against dirt and vandalism. The integrated sensors are monitoring the card level in the magazines and gives warning if one is full.
- The CCM-4000 card collector with 2 exchange cartridges.
- Card magazine capacity for up to 1.000 cards (2 x 500).
- With reader/encoder for magnetic, chip and RFID cards.
- Magnetic cards HiCo and/or LoCo simultaneous processing.
- Separately controllable magazines for two diffenrent card type processing.
- With card capture function and separate box.
- Optional with bezel or shutter.
- With sensors for card level monitoring
- Available with RS-232 interface.
| Description | Note | |
|---|---|---|
| Model/Type | CCM-4000 card collector | |
| Card magazine | 2 exchange cartridges | |
| Card transportation | Roller | |
| Card thickness | 0,76 – 1,0 mm | |
| Card size | ISO 7810
85,725 x 53,975 mm |
|
| Magnetic card | 3 tracks simultaneous
reading + encoding HiCo and/or LoCo |
Optional switch |
| Chip card | reading + encoding
ISO 7816 / 8 contacts |
|
| RFID | reading + encoding
ISO 14443 Mifare or comp. |
|
| Card magazine capacity | 2 x 300, 2 x 500 cards | |
| Interface | RS-232, TTL | |
| Magazine sensor | Yes | Magazine inside |
| Magazine full | Yes | |
| Card capture function | Yes | |
| Captrue card box | Yes (30 cards) | |
| Shutter | optional | |
| Bezel | optional | |
| Dimensions | Hybrid: Magnetic, Chip, RFID
2 x 300 cards 287 x 364 x 395 mm 2 x 500 cards 287 x 364 x 455 mm Only RFID reader 2 x 300 cards 287 x 281 x 395 mm 2 x 500 cards 287 x 281 x 455 mm Bezel + 17 mm Shutter + 44 mm |
|
| Power consumption | DC 24V, 3A | |
